DL300U-4WD-1.6

ENGINE & DRIVETRAIN

• Active Descent Control

  Not Applicable

• Cooling

  liquid

• Cylinders Displacement

  275cc

• Drive System Type

  Front and rear wheel drive

• Engine Braking System (EBS)

  not configured

• Engine Type

  Single cylinder, water-cooled, four stroke, tilting type

• Fuel System/Battery

  32Ah

• Horsepower

  17 hp

• Transmission/Final Drive

  1st gear, 2nd gear, 3rd gear, 4th gear, 5th gear, Neutral

DIMENSIONS

• Bed Box Dimensions (L x W x H)

  1600x1200x500mm

• Estimated Dry Weight

  420kg

• Front/Rear Rack

  50kg/400kg

• Fuel Capacity

  9.5L

• Ground Clearance

  17cm

• Overall Vehicle Size (L x W x H)

  （3130×1280×1450) ±50mm

• Payload Capacity

  400kg

• Person Capacity

  1

• Seat Height

  81cm

• Wheelbase

  200cm

BRAKES

• Front/Rear Brakes

  Front disc brake/rear drum brake

• Parking Brake

  Lockable handle handbrake

ADDITIONAL SPECIFICATIONS

• Cargo System

  Configure a cargo box that is 1.6 meters long, 1.2 meters wide, and 0.5 meters high

• Instrumentation

  All digital instrument panel, including vehicle speed, mileage, speed, gear indication, fuel level, high and low beam, and turn signal indication.

• Lighting

  35 watt high and low beam incandescent lamps, 2 35 watt incandescent bulbs for turn signals, etc. The LED four in one taillights include reverse, brake, turn, and position lights.

• Other Standard Features

  The front shelf includes a winch installation seat

TIRES / WHEELS

• Front Tires

  22*8-10

• Rear Tires

  22*10-10

• Wheels

  Front wheel hub iron (5.5 * 10) and rear wheel hub iron (8.0 * 10)

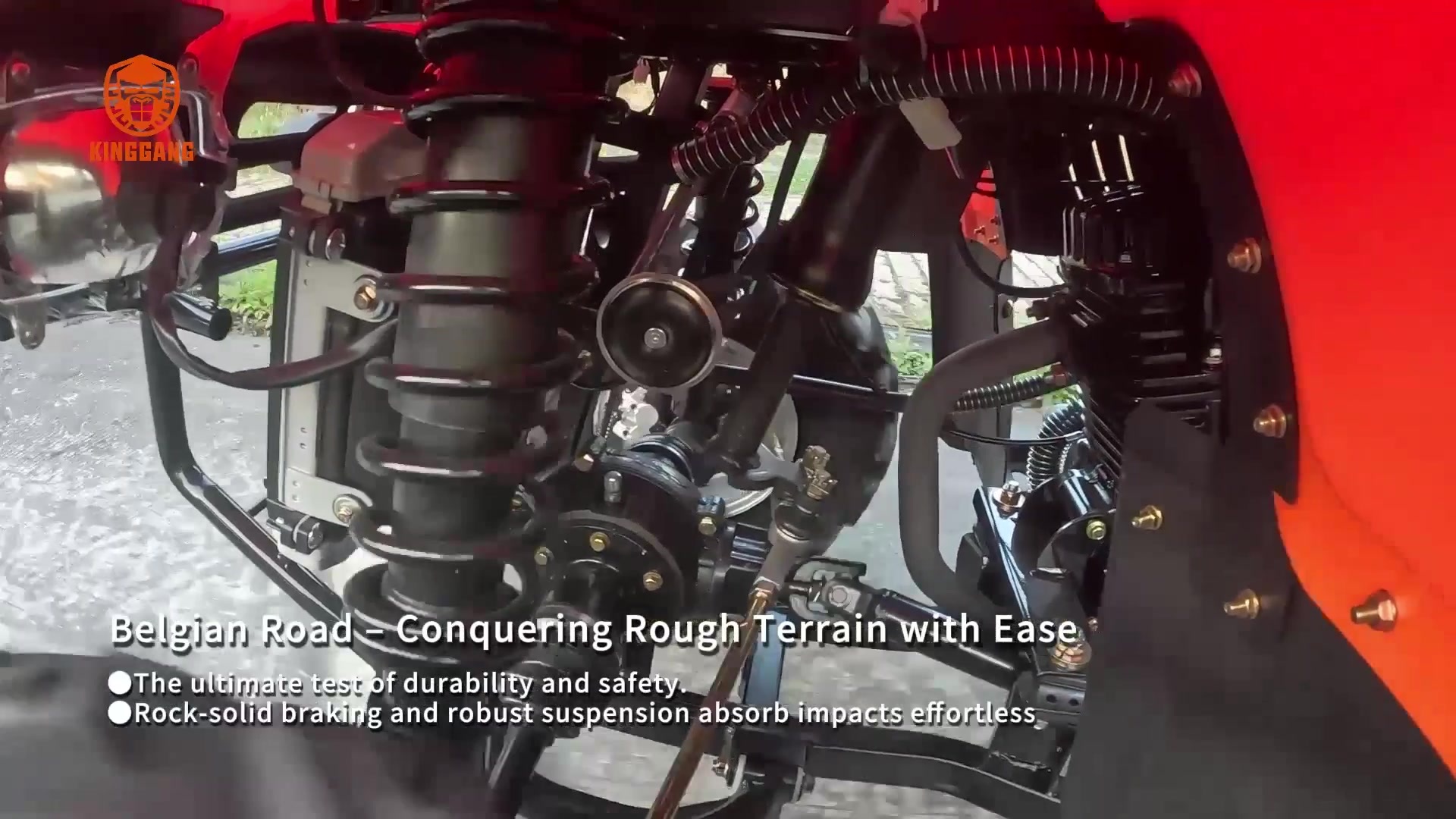

SUSPENSION

• Front Suspension

  MacPherson front suspension
