DL50DU-2WD-1.6

Silent Loading, Unrestrained Adventure

Home page

DL50DU-2WD-1.6

High-load electric ATV, designed for farms, construction, rescue, and more. Zero emissions, low noise, and optional electric winch for easier recovery.

Explore Now

Test Drive

CONFIGURATION

Engine Type / Motor Type	Asynchronous Motor	Fuel System / Battery	Lead-acid Battery / Lithium Iron Phosphate Battery
Transmission System	Shaft Drive	Front/Rear Brake Type	Front Disc Rear Disc
Parking Type	Mechanical Handle	Instrument	LCD Instrument
Lighting System	Dual Halogen Front Headlights, Turn Signal Lights, Combination Tail Lights	Front Suspension	MacPherson Independent Suspension

PARAMETERS

ENGINE & DRIVETRAIN
- Drive System Type

  Rear-wheel drive
- Engine Type

  Asynchronous Motor
- Fuel System/Battery

  Lead-acid battery/Lithium iron phosphate battery
- Horsepower

  Rated power 5kw
- Transmission/Final Drive

  Axle Drive
DIMENSIONS
- Bed Box Dimensions (L x W x H)

  1200×1600×500
- Estimated Dry Weight

  618kg
- Ground Clearance

  170±10
- Overall Vehicle Size (L x W x H)

  3100×1270×1400mm
- Payload Capacity

  400kg
- Person Capacity

  1
- Seat Height

  730mm
- Wheelbase

  1950mm
BRAKES
- Front/Rear Brakes

  Front disc and rear drum
- Parking Brake

  Mechanical Handle
ADDITIONAL SPECIFICATIONS
- Instrumentation

  LCD instrument
- Lighting

  Dual front headlights, turn signals, combination taillights
TIRES / WHEELS
- Front Tires

  22×8.0-10
- Rear Tires

  22×10.0-10
- Wheels

  Front: Iron rim (5.5*10) Rear: Iron rim (8.0*10)
SUSPENSION
- Front Suspension

  MacPherson independent suspension

SELLING POINT

Disc brake system

Linkage disc brake system, braking force increased by 30% (compared to drum brakes), enhancing driving safety on the road.

Professional off-road tires

Widened deep tooth patterned tread, ground contact area increased by 25%, wear resistance improved by 40%.

Hydraulic Dump Truck

Thickened load-bearing steel plate spring, maximum load capacity reaches 1 ton, hydraulic unloading efficiency improved by 50%.

High Torque Electric Winch

Rated traction force 11kN, rescue efficiency increased by 60%.

Pure Electric Power System

5kw asynchronous motor, replacing traditional low-efficiency thermal engines, leading the industry in economic efficiency.

Stable chassis design

2 meters longer wheelbase, integrated frame torsional stiffness increased by 20%, excellent driving stability.

CAN communication system

CAN bus connection, high-speed real-time feedback, more accurate display.

APPLICATION

关闭视频

DL50DU-2WD-1.6-蓬 cobblestone road

关闭视频

DL50DU-2WD-1.6-蓬 Showcase of Sample ATV Models

关闭视频

DL50DU-2WD-1.6-蓬 Belgian Road

关闭视频

DL50DU-2WD-1.6-蓬 20°Extreme Slope

关闭视频

DL50DU-2WD-1.6-蓬 Large sine path

关闭视频

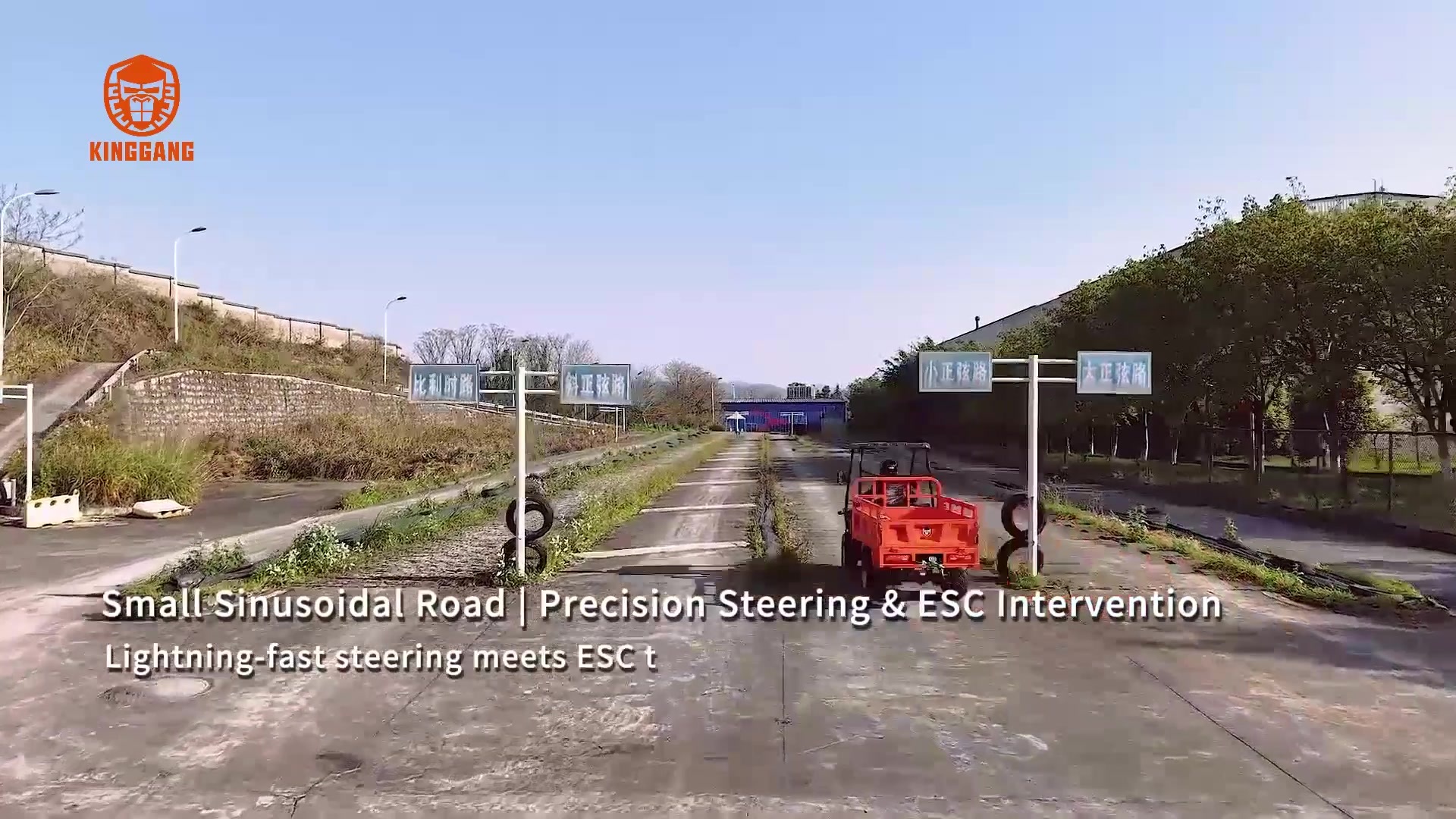

DL50DU-2WD-1.6-蓬 Small sine path

关闭视频

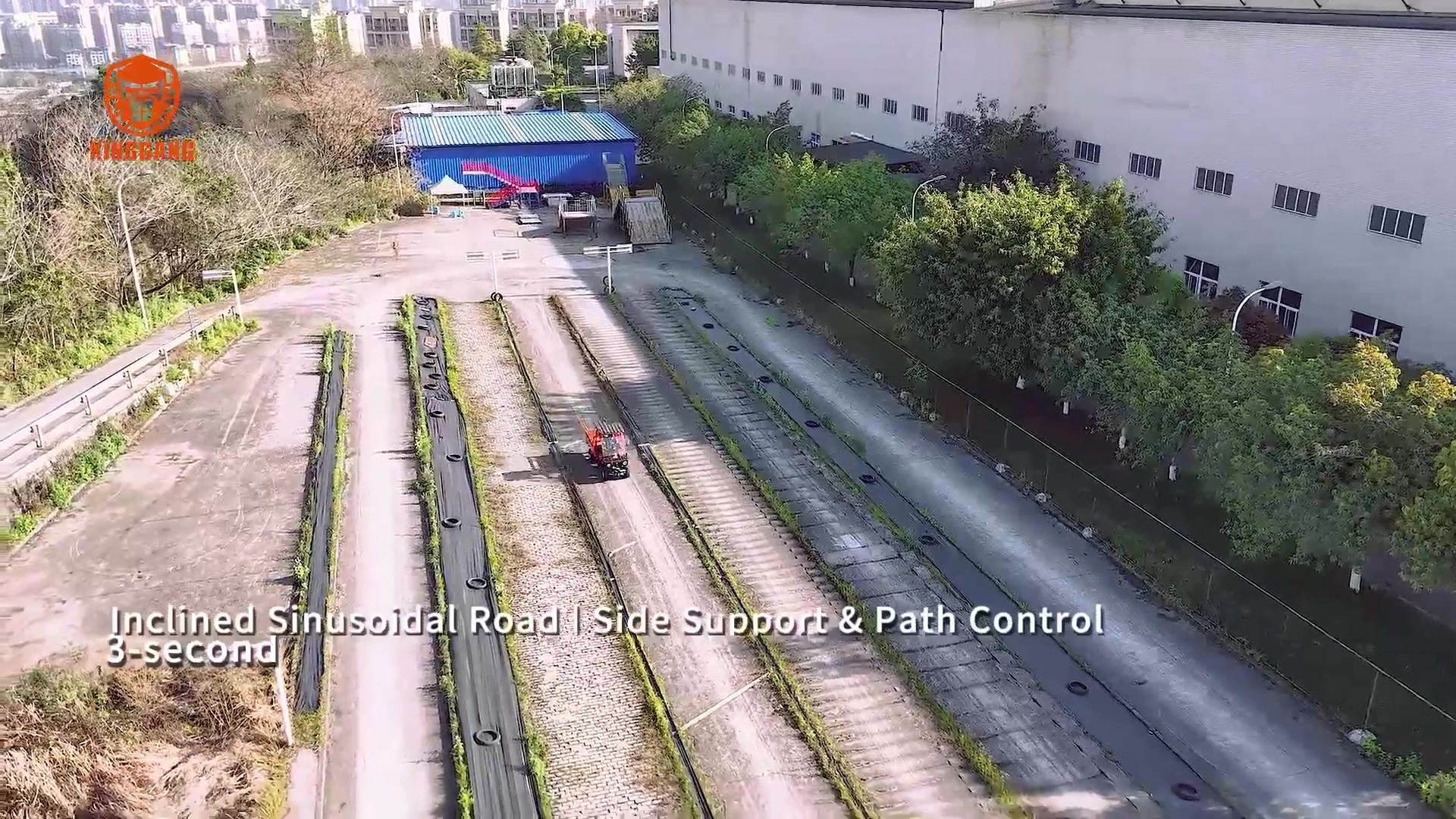

DL50DU-2WD-1.6-蓬 inclined sinusoidal Road

关闭视频

DL50DU-2WD-1.6-蓬 4°slope
